KEnterText HC

by Kyonides

Introduction

Ever since HiddenChest version 1.1.98 was released, game developers are now able to implement a very simple text input interface in their games.
It heavily depends on the new additions to the Input module to make it work normally.

Running HiddenChest version 1.1.99 is HIGHLY recommended here.

The CapsLock and Shift keys DO alter the outcome while typing a text.

You can delete characters with Backspace or Delete keys if you use my script.

You can count on the basic ASCII characters to enter a name or nickname or even a number. Hyphen -, period ., and space " " are recognized automatically.
WARNING: Accents will be ignored by default. Sorry about that.

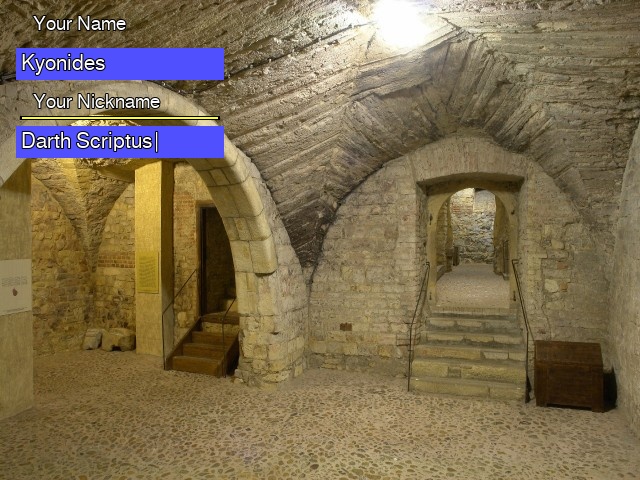

Screenshots

RMXP

Code:

# * KEnterText HC for XP * #
#   Scripter : Kyonides
#   2025-12-18

# $scene = KEnter::TextScene.new

module KEnter

class TextBox
  REGEX_INT = /\-?[0-9]/
  REGEX_DBL = /\-?[0-9]+[\.,]?[0-9]?/
  def initialize(bw, bh, color)
    @index = 0
    @char_limit = 1
    @number_mode = nil
    @viewport = Viewport.new(0, 0, bw, bh)
    bitmap = Bitmap.new(bw, bh)
    bitmap.fill_rect(bitmap.rect, color)
    @box = Sprite.new(@viewport)
    @box.bitmap = bitmap
    @bitmap = Bitmap.new(bw - 8, bh - 4)
    @bitmap.font.size = 24
    @bitmap.font.outline = true
    @rect = @bitmap.rect
    @text = Sprite.new(@viewport)
    @text.bitmap = @bitmap
    bitmap = Bitmap.new(20, 28)
    bitmap.font.size = 24
    bitmap.font.outline = true
    bitmap.draw_text(bitmap.rect, "|")
    @cursor = Sprite.new(@viewport)
    @cursor.visible = false
    @cursor.bitmap = bitmap
    @sprites = [@text, @box, @cursor]
  end

  def move2(bx, by, n, lh)
    @viewport.x = bx
    @viewport.y = by + n * lh
    @text.set_xy(4, 2)
    @cursor.set_xy(8, 2)
  end

  def reset_cursor
    @index = @chars.size - 1
    set_cursor(@chars.join)
  end

  def chars=(ary)
    @chars = ary
    @index = ary.size - 1
    refresh
    set_cursor(@chars.join)
  end

  def move_back
    @index -= 1 if @index > 0
    text = @chars[0, @index] || [""]
    set_cursor(text.join)
  end

  def move_forward
    @index += 1 if @index < @chars.size - 1
    text = @chars[0, @index] || [""]
    set_cursor(text.join)
  end

  def process_char
    char = Input.last_char
    return unless char
    case @number_mode
    when :int
      char = char[REGEX_INT]
    when :dbl
      char = char[REGEX_DBL]
    else
      if Input.press?(Input::SHIFT)
        char = Input.capslock_state ? char.downcase : char.upcase
      end
    end
    return unless char
    @index += 1
    if @chars.size == @index
      @chars << char
    else
      @chars[@index, 0] = char
    end
    @chars.compact!
    text = @chars[0, @index]
    refresh
    set_cursor(text.join)
  end

  def delete_prev_char
    if @chars.size - 1 == @index
      @chars.pop
      @index = [@chars.size - 1, 0].max
      text = @chars
    else
      @chars.delete_at(@index)
      @index = [@index - 1, 0].max
      text = @chars[0, @index] || [""]
    end
    refresh
    set_cursor(text.join)
  end

  def delete_next_char
    @chars.delete_at(@index + 1)
    refresh
  end

  def refresh
    @bitmap.clear
    @bitmap.draw_text(@rect, @chars.join)
  end

  def set_cursor(text)
    tw = @bitmap.text_width(text)
    @cursor.x = tw + 8
  end

  def char_max?
    @chars.size == @char_limit
  end

  def integer_only!
    @number_mode = :int
  end

  def double_only!
    @number_mode = :dbl
  end

  def include_all!
    @number_mode = nil
  end

  def dispose
    @sprites.each do |sprite|
      sprite.bitmap.dispose
      sprite.dispose
    end
    @sprites.clear
    @viewport.dispose
  end
  attr_writer :char_limit
  attr_reader :chars, :index, :cursor
end

class TextScene
  CHAR_LIMIT = 18
  NUM_LIMIT = 2
  BACKDROP = "catacombs"
  LABELS = ["Your Name", "Your Nickname", "Your Age"]
  @@texts = Array.new(3) {[]}
  def main
    @stage = :main
    @blink_timer = Graphics.frame_rate / 5
    @blink_state = false
    @index = 0
    @text_sprites = []
    black = Color.new(0, 0, 0)
    @blue = Color.new(80, 80, 255)
    custom = Color.new(255, 255, 40)
    lbit = Bitmap.new(208, 180)
    lbit.font.outline = true
    3.times {|n| lbit.draw_text(16, 78 * n, 220, 24, LABELS[n]) }
    @backdrop = Sprite.new
    @backdrop.bitmap = RPG::Cache.title(BACKDROP)
    @label_sprite = Sprite.new
    @label_sprite.set_xy(16, 12)
    @label_sprite.bitmap = lbit
    make_box_text_sprites
    cb = Bitmap.new(208, 4)
    @main_cursor = Sprite.new
    @main_cursor.set_xy(20, 38)
    @main_cursor.bitmap = cb
    cb.fill_rect(cb.rect, black)
    cb.fill_rect(2, 1, 204, 2, custom)
    @text_cursor = @text_sprites[0].cursor
    Graphics.transition
    while @stage
      Graphics.update
      Input.update
      update
    end
    Graphics.freeze
    cb.dispose
    @main_cursor.dispose
    @text_sprites.each_with_index do |box, n|
      box.dispose
      @@texts[n] = box.chars
    end
    @label_sprite.dispose
    @backdrop.bitmap.dispose
    @backdrop.dispose
  end

  def make_box_text_sprites
    3.times do |n|
      textbox = TextBox.new(n < 2 ? 228 : 116, 32, @blue)
      textbox.move2(16, 48, n, 78)
      textbox.chars = @@texts[n]
      textbox.char_limit = n < 2 ? CHAR_LIMIT : NUM_LIMIT
      textbox.integer_only! if n == 2
      @text_sprites << textbox
    end
  end

  def update
    case @stage
    when :main
      update_index
    when :text_input
      update_text_input
    end
  end

  def update_blink
    @blink_timer -= 1
    if @blink_timer == 0
      @blink_timer = Graphics.frame_rate / 5
      @blink_state = !@blink_state
      @text_cursor.visible = @blink_state
    end
  end

  def update_index
    if Input.trigger?(Input::Escape)
      $game_system.se_play($data_system.cancel_se)
      $scene = Scene_Map.new
      return @sprite = @stage = nil
    elsif Input.trigger?(Input::UP)
      set_index(-1)
      return
    elsif Input.trigger?(Input::DOWN)
      set_index(1)
      return
    elsif Input.trigger?(Input::Enter) or Input.trigger?(Input::Return)
      $game_system.se_play($data_system.decision_se)
      Input.text_input = true
      Input.update
      @stage = :text_input
      @sprite = @text_sprites[@index]
      @blink_timer = Graphics.frame_rate / 5
      @text_cursor.visible = @blink_state = true
    end
  end

  def set_index(n)
    $game_system.se_play($data_system.cursor_se)
    @index = (@index + n) % 3
    @main_cursor.y = 38 + @index * 78
    @text_cursor = @text_sprites[@index].cursor
  end

  def update_text_input
    update_blink
    if Input.trigger?(Input::Left)
      $game_system.se_play($data_system.cursor_se)
      @sprite.move_back
      return
    elsif Input.trigger?(Input::Right)
      $game_system.se_play($data_system.cursor_se)
      @sprite.move_forward
      return
    elsif Input.trigger?(Input::Escape)
      $game_system.se_play($data_system.cancel_se)
      process_text_box_cancel
      return
    elsif Input.trigger?(Input::Enter) or Input.trigger?(Input::Return)
      $game_system.se_play($data_system.decision_se)
      Graphics.screenshot
      process_text_box_cancel
      return
    elsif Input.repeat?(Input::Backspace)
      $game_system.se_play($data_system.buzzer_se)
      @sprite.delete_prev_char
      return
    elsif Input.repeat?(Input::Delete)
      $game_system.se_play($data_system.buzzer_se)
      @sprite.delete_next_char
      return
    elsif Input.trigger_any? and Input.last_key?
      if @sprite.char_max?
        $game_system.se_play($data_system.buzzer_se)
        return
      end
      $game_system.se_play($data_system.equip_se)
      @sprite.process_char
    end
  end

  def process_text_box_cancel
    Input.text_input = false
    Input.clear_text_input
    Input.update
    @sprite.reset_cursor
    @text_cursor.visible = @blink_state = false
    @blink_timer = Graphics.frame_rate / 5
    @stage = :main
  end
end

end

RMVX + RMVX ACE

Code:

# * KEnterText HC for VX + ACE * #
#   Scripter : Kyonides
#   2025-12-18

# For VX:
# $scene = KEnter::TextScene.new

# For VX ACE:
# SceneManager.call(KEnter::TextScene)

module KEnter

class TextBox
  REGEX_INT = /\-?[0-9]/
  REGEX_DBL = /\-?[0-9]+[\.,]?[0-9]?/
  def initialize(bw, bh, color)
    @index = 0
    @char_limit = 1
    @number_mode = nil
    @viewport = Viewport.new(0, 0, bw, bh)
    bitmap = Bitmap.new(bw, bh)
    bitmap.fill_rect(bitmap.rect, color)
    @box = Sprite.new(@viewport)
    @box.bitmap = bitmap
    @bitmap = Bitmap.new(bw - 8, bh - 4)
    @bitmap.font.size = 24
    @bitmap.font.outline = true
    @rect = @bitmap.rect
    @text = Sprite.new(@viewport)
    @text.bitmap = @bitmap
    bitmap = Bitmap.new(20, 28)
    bitmap.font.size = 24
    bitmap.font.outline = true
    bitmap.draw_text(bitmap.rect, "|")
    @cursor = Sprite.new(@viewport)
    @cursor.visible = false
    @cursor.bitmap = bitmap
    @sprites = [@text, @box, @cursor]
  end

  def move2(bx, by, n, lh)
    @viewport.x = bx
    @viewport.y = by + n * lh
    @text.set_xy(4, 2)
    @cursor.set_xy(8, 2)
  end

  def reset_cursor
    @index = @chars.size - 1
    set_cursor(@chars.join)
  end

  def chars=(ary)
    @chars = ary
    @index = ary.size - 1
    refresh
    set_cursor(@chars.join)
  end

  def move_back
    @index -= 1 if @index > 0
    text = @chars[0, @index] || [""]
    set_cursor(text.join)
  end

  def move_forward
    @index += 1 if @index < @chars.size - 1
    text = @chars[0, @index] || [""]
    set_cursor(text.join)
  end

  def process_char
    char = Input.last_char
    return unless char
    case @number_mode
    when :int
      char = char[REGEX_INT]
    when :dbl
      char = char[REGEX_DBL]
    else
      if Input.press?(Input::SHIFT)
        char = Input.capslock_state ? char.downcase : char.upcase
      end
    end
    return unless char
    @index += 1
    if @chars.size == @index
      @chars << char
    else
      @chars[@index, 0] = char
    end
    @chars.compact!
    text = @chars[0, @index]
    refresh
    set_cursor(text.join)
  end

  def delete_prev_char
    if @chars.size - 1 == @index
      @chars.pop
      @index = [@chars.size - 1, 0].max
      text = @chars
    else
      @chars.delete_at(@index)
      @index = [@index - 1, 0].max
      text = @chars[0, @index] || [""]
    end
    refresh
    set_cursor(text.join)
  end

  def delete_next_char
    @chars.delete_at(@index + 1)
    refresh
  end

  def refresh
    @bitmap.clear
    @bitmap.draw_text(@rect, @chars.join)
  end

  def set_cursor(text)
    tw = @bitmap.text_width(text)
    @cursor.x = tw + 8
  end

  def char_max?
    @chars.size == @char_limit
  end

  def integer_only!
    @number_mode = :int
  end

  def double_only!
    @number_mode = :dbl
  end

  def include_all!
    @number_mode = nil
  end

  def dispose
    @sprites.each do |sprite|
      sprite.bitmap.dispose
      sprite.dispose
    end
    @sprites.clear
    @viewport.dispose
  end
  attr_writer :char_limit
  attr_reader :chars, :index, :cursor
end

class TextScene
  CHAR_LIMIT = 18
  BACKDROP = "catacombs"
  LABELS = ["Your Name", "Your Nickname", "Your Age"]
  @@texts = Array.new(3) {[]}
  def main
    @vx_ace = Game::RGSS_VERSION == 3
    @stage = :main
    @blink_timer = Graphics.frame_rate / 5
    @blink_state = false
    @index = 0
    @text_sprites = []
    black = Color.new(0, 0, 0)
    @blue = Color.new(80, 80, 255)
    custom = Color.new(255, 255, 40)
    lbit = Bitmap.new(208, 180)
    lbit.font.outline = true
    3.times {|n| lbit.draw_text(16, 78 * n, 220, 24, LABELS[n]) }
    @backdrop = Sprite.new
    @backdrop.bitmap = Cache.system(BACKDROP)
    @label_sprite = Sprite.new
    @label_sprite.set_xy(16, 12)
    @label_sprite.bitmap = lbit
    make_box_text_sprites
    cb = Bitmap.new(208, 4)
    @main_cursor = Sprite.new
    @main_cursor.set_xy(20, 38)
    @main_cursor.bitmap = cb
    cb.fill_rect(cb.rect, black)
    cb.fill_rect(2, 1, 204, 2, custom)
    @text_cursor = @text_sprites[0].cursor
    Graphics.transition
    while @stage
      Graphics.update
      Input.update
      update
    end
    Graphics.freeze
    cb.dispose
    @main_cursor.dispose
    @text_sprites.each_with_index do |box, n|
      box.dispose
      @@texts[n] = box.chars
    end
    @label_sprite.dispose
    @backdrop.bitmap.dispose
    @backdrop.dispose
  end

  def make_box_text_sprites
    3.times do |n|
      textbox = TextBox.new(n < 2 ? 228 : 116, 32, @blue)
      textbox.move2(16, 48, n, 78)
      textbox.chars = @@texts[n]
      textbox.char_limit = n < 2 ? CHAR_LIMIT : NUM_LIMIT
      textbox.integer_only! if n == 2
      @text_sprites << textbox
    end
  end

  def update
    case @stage
    when :main
      update_index
    when :text_input
      update_text_input
    end
  end

  def update_blink
    @blink_timer -= 1
    if @blink_timer == 0
      @blink_timer = Graphics.frame_rate / 5
      @blink_state = !@blink_state
      @text_cursor.visible = @blink_state
    end
  end

  def update_index
    if Input.trigger?(Input::Escape)
      Sound.play_cancel
      $scene = Scene_Map.new
      return @sprite = @stage = nil
    elsif Input.trigger?(Input::UP)
      set_index(-1)
      return
    elsif Input.trigger?(Input::DOWN)
      set_index(1)
      return
    elsif Input.trigger?(Input::Enter) or Input.trigger?(Input::Return)
      @vx_ace ? Sound.play_ok : Sound.play_decision
      Input.text_input = true
      Input.update
      @stage = :text_input
      @sprite = @text_sprites[@index]
      @blink_timer = Graphics.frame_rate / 5
      @text_cursor.visible = @blink_state = true
    end
  end

  def set_index(n)
    Sound.play_cursor
    @index = (@index + n) % 3
    @main_cursor.y = 38 + @index * 78
    @text_cursor = @text_sprites[@index].cursor
  end

  def update_text_input
    update_blink
    if Input.trigger?(Input::Left)
      $game_system.se_play($data_system.cursor_se)
      @sprite.move_back
      return
    elsif Input.trigger?(Input::Right)
      $game_system.se_play($data_system.cursor_se)
      @sprite.move_forward
      return
    elsif Input.trigger?(Input::Escape)
      Sound.play_cancel
      process_text_box_cancel
      return
    elsif Input.trigger?(Input::Enter) or Input.trigger?(Input::Return)
      @vx_ace ? Sound.play_ok : Sound.play_decision
      Graphics.screenshot
      process_text_box_cancel
      return
    elsif Input.repeat?(Input::Backspace)
      Sound.play_buzzer
      @sprite.delete_char
      return
    elsif Input.repeat?(Input::Delete)
      $game_system.se_play($data_system.buzzer_se)
      @sprite.delete_next_char
      return
    elsif Input.trigger_any? and Input.last_key?
      if @sprite.char_max?
        Sound.play_buzzer
        return
      end
      Sound.play_equip
      @sprite.process_char
    end
  end

  def process_text_box_cancel
    Input.text_input = false
    Input.clear_text_input
    Input.update
    @sprite.reset_cursor
    @text_cursor.visible = @blink_state = false
    @blink_timer = Graphics.frame_rate / 5
    @stage = :main
  end
end

end

Terms & Conditions

The same as HiddenChest's.
That's it!

[kyonides]

Script Update

Today's release features a custom backdrop, some catacombs to be precise, and a main cursor to let you know which text box is currently selected.
Yes, there are other changes that affect how the contents are processed internally. And I also altered some X & Y bitmap coordinates to keep the scene's appearance as neat and uniform as possible.

These scripts have also been uploaded to HiddenChest's GitHub page, namely to the extras directory.

[kyonides]

Second Script Update

This release doesn't really offer anything new, yet, it might allow game developers to easily use or reuse the KEnter::TextBox class in other contexts or menus. It now keeps track of everything related to the box and the custom text to be displayed there.

KEnter::TextBox's Methods

• move2(x, y, line_number, line_height)

• chars=(array)

• char_limit=(number)

• process_char

• delete_char

• char_max?


Custom Input's Singleton Methods

• text_input=(boolean)

• clear_text_input

• trigger_any?

• last_key?

• last_char

• capslock_state


NOTES

Nope, you don't need to to type some (parentheses) when you want to assign a value to a variable or object's method. They're just there as some sort of placeholder for a specific value, namely a boolean or a number, as you can see above.

[kyonides]

Third Script Update

This time I have come back to let you know that the script now allows you to just enter numbers instead of all of the available characters.

KEnter::TextBox's Methods

• move2(x, y, line_number, line_height)

• chars=(array)

• char_limit=(number)

• process_char

• delete_char

• char_max?

• integer_only!

• double_only!

• include_all!

• cursor


include_all! is pretty self explanatory indeed, but integer_only! will let you enter natural numbers like 0 or 30. No decimals included.
double_only! would allow you to enter numbers with decimals in a FUTURE release of the HiddenChest engine.

[kyonides]

Fourth Script Update

After releasing HiddenChest version 1.1.99, these scripts have been updated as well.
Now it is possible to move the cursor to your left or your right if allowed.
This also means you can delete a character with the Delete button.

KEnter::TextBox's Methods

• move2(x, y, line_number, line_height)

• chars=(array)

• char_limit=(number)

• process_char

• delete_prev_char

• delete_next_char

• move_back

• move_forward

• char_max?

• integer_only!

• double_only!

• include_all!

• reset_cursor

• cursor
